KCO-FAT-24B Fiber Optic Distribution Box / 24 Core Terminal Box / Splitter Box
Descriptions:
- KCO-FAT-24 series outdoor wall mount and pole mounted fiber optic termination box for FTTH drop cable entry or exist, it is available in 3 colors:
Black: KCO-FAT-24B
White: KCO-FAT-24W
Grey: KCO-FAT-24G
- Fiber optic terminal box KCO-FAT-24 is a box for fiber terminal distribution in optical fiber transmission and communication network.
- It can be 24 fibers splicing, protection and distribution.
- KCO-FAT-24 can be distribution box with maximun 24 ports of adapter plate for SC adapter and also be a splitter box.
- KCO-FAT-24 can be distribution box with 24 ports adapter plate or can be splitter box with LGX splitter plate. LGX splitter plate can install 1*2, 1*4, 1*8, 1*16 LGX box type of PLC splitter or can install 1*2, 1*4, 1*8, 1*12, 1*16 and 1*24 ABS box type or mini tube type of PLC Splitter.
- It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.
- It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
- The optical distribution box is a solution that facilitates the installation of optical termination in branch networks for FTTH environments.
Features:
- P/N: KCO-FAT-24
- Material: ABS or ABS+PC plastic.
- Long life time: about 20 years
- Can accommodate 1x4, 1x6, 1x8, 1x12 PLC splitter.
- Rainfall resistant, IP65 outdoor using.
- Can load 24pcs LC, FC, ST, SC, E2000 … adapters.
- Wall mounting and pole mounting application.
- The cover with 2 reinforcing closing pieces, easy to open and close.
- 02pcs cable entry ports (max. diameter 8mm cable) for cable entry without cutting;
- 01pcs cable entry ports M20 PG cable gland (max. Cable diameter 12mm);
- 24pcs exit ports for FTTH drop cable.

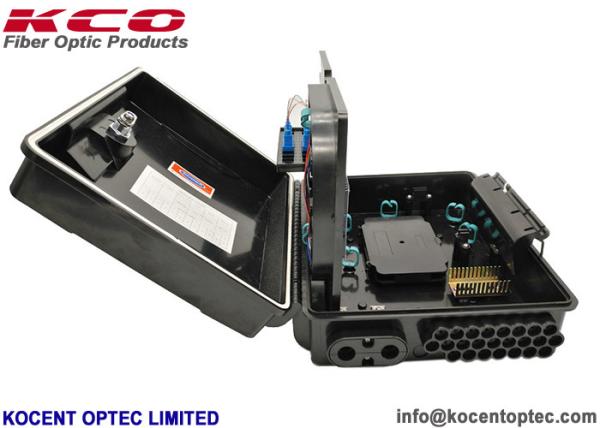

Products photos:
Specifications:
| Model | KCO-FAT-24 |
| Material | PC+ABS or ABS |
| Dimension | 340*250*110mm |
| Cable Entry | 2 cable entrance: 10-16.5mm |
| Drop cable port | 24 ports |
| Applicable cable diameter | 2*3mm FTTH drop cable, 2*5mm figure 24 FTTH drop cable |
| Max. Capacity | 24 Fibers, 1 tray x 12F |
| Adapter | Max. 24pcs SC simplex (LC, FC, E2000,... optional) |
| Sealing structure | Mechanical sealing with PE waterproof sealing ring |
| PLC Splitter | Max. micro plug-in 1x24 Splitter |
| Color | Gray, White or Black |
| IP Grade | IP65 |
| Operating Temperature | -40°C~+80°C |
| Relative Humidity | <95%(+40°C) |
| Insulated Resistance | >2x10MΩ/500V(DC) |
Installation Method
(in overstriking) | Floor Standing / Wall Mounted / Pole Mounted /
Corridor Mounted / Mounted in Cabinet |
Dimension:
| Model | Capacity | Dimension (LxWxH) | Weight |
| KCO-FAT-24B | 1*24 PLC splitter, 24 SC adaptors | 350*250*110MM | 1.5kg |
| Packing | 1pc/box | 380*270*120MM | |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: COSCO, HUYNDAI, etc
- Standard shipping port: Shenzhen, Hongkong, Ningbo
