16 Core Wall Mount Fiber Termination Box / Fiber Optic Termination Box

16core Outdoor Fiber Optic Distriution Box KCO-ODP-16W For 2*16 1*16 PLC Splitter ABS+PC

1. Description:

- KCO-ODP-16W Outdoor Fiber Optic Distribution Box is the place where the end of the cable connection, and then through the jump line access light switches.
- Terminal box is to connect cable fiber protection. In the practical work of terminal box can be used as indoor connector box but rarely be connector box as a terminal box uses different.
- This box can be divided into fiber optic cable transfer box and cable transfer box.
- Their functions are used in front end user wiring.
- Outdoor Fiber Optic Distribution Box generally refers to the optical fiber box, also called optical cable joint box. In some places, especially in radio and television system, also called light up in your bag, its role is to protect the damage of cable connector from theoutside world.

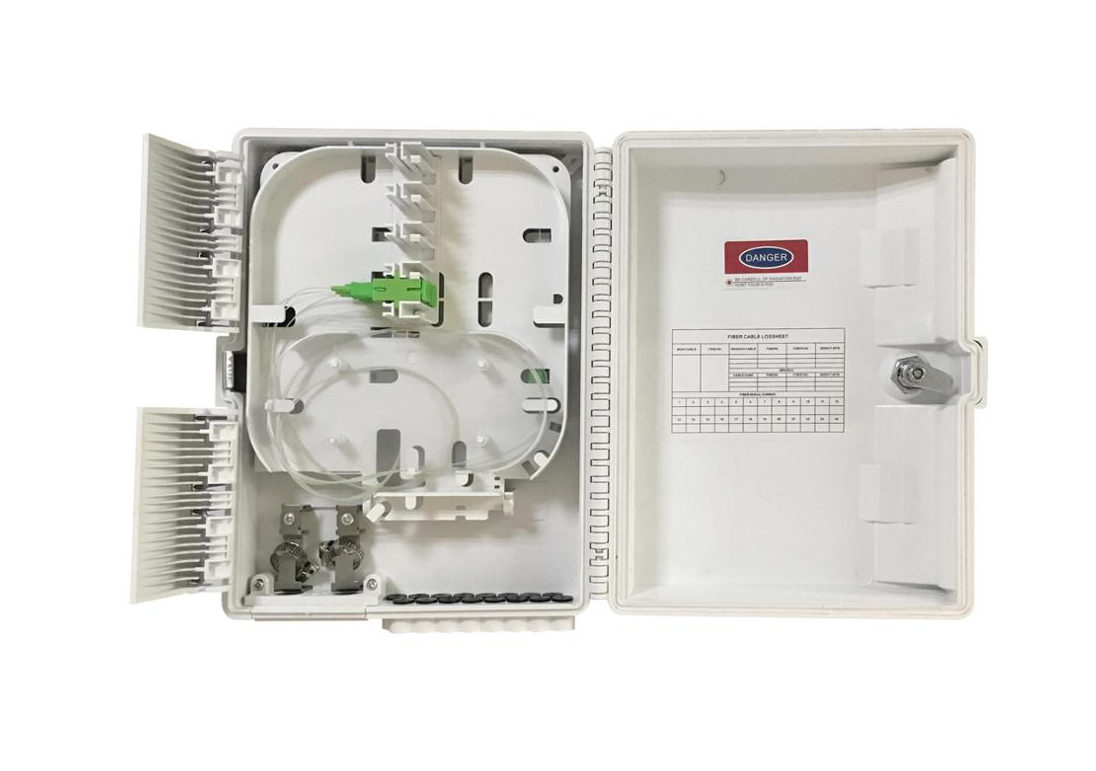

Products photos:







Features:
- Wall mountable or Pole mountable application
- IP67 Water-proof, suiable to install outdoor and indoor
- Excellent Armor Plate
- Good-looking Figure
- Design for large splicing tray
- One to four entry are available
- Metal assemblies of optic cable terminating box and optic cable metal strength chip
- Complete accessories
- Reasonable designing
- Large capacity
- Reliability
- Good protection of pigtails
- Easy to installation and maintenance
- Apply to extensive field


Application:
- Widely used in FTTH access network.
- Telecommunication networks.
- CATV Networks.
- Data communications networks.
- Local Area Networks.

Specifications:
- Operating Temperature: -25°C~+45°C
- Relative Hunmidity: ≤95%(40°C)
- Atmosphere Pressure: 70KPa~106KPa
- Insulated Resistance: ≥2x104MΩ/500v(DC)
- Dielectric Strength: ≥15KV(DC)/1min,no spark-over and no flying arc
- Fiber Bend Radius: ≥40mm

Dimension:

- Terminal box, 1 unit
- Keys for lock, 2 keys
- Wall mount installation accessories, 1 set

optical termination box

fibre termination box

16 Core Wall Mount Fiber Termination Box / Fiber Optic Termination Box Images
